Food Raw Materials Warehouse Loading Case

In the daily operations of a large food raw material factory, how to efficiently load and ship a large volume of boxed goods from the warehouse is a key factor affecting overall logistics efficiency. Traditional forklift handling not only requires a lot of labor, but also has limited turnaround efficiency in warehouses with dense shelving. This case showcases an innovative solution: by deploying a 60 m-long Multi-Wedge Belt Powered Roller Conveyor on the ground and matching it with a medium incline conveyor, a continuous conveying channel from the depths of the warehouse directly to the truck bed was built, achieving a more streamlined and efficient loading operation.

Solution Configuration and Layout

The warehouse of this food raw material factory is spacious, with a large number of storage racks inside. To optimize the loading process, the solution uses the following core equipment combination:

• Ground Conveying Section: a total of 60 m of Multi-Wedge Belt Powered Roller Conveyor.
• Incline Transition Section: a medium incline conveyor used to connect the ground conveying line with the truck bed and overcome the height difference.
• Conveying Section Inside the Truck Bed: a 10 m-long Multi-Wedge Belt Powered Roller Conveyor, extending directly into the truck bed.

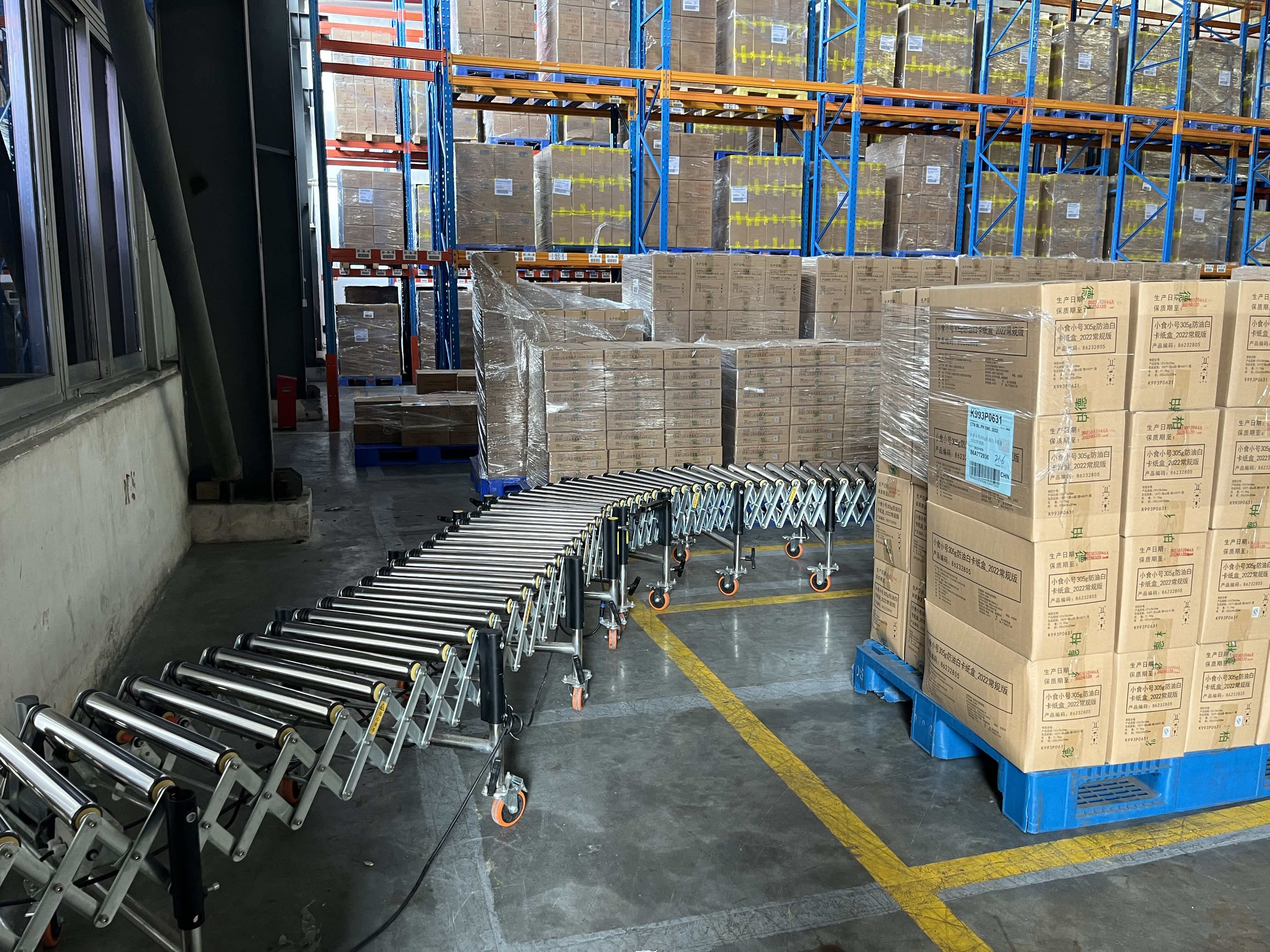

The layout of the conveying line is highly flexible. The 60 m roller line on the ground is not laid out in a straight line; instead, it is designed to follow a path that can turn freely according to the arrangement of the warehouse racks and the actual forklift aisles. This allows the conveying line to wind through the rack area, cover picking points to the greatest extent, and reduce forklift handling distance.

Workflow and Efficiency Improvement

After the retrofit, the loading process became exceptionally simple and efficient:

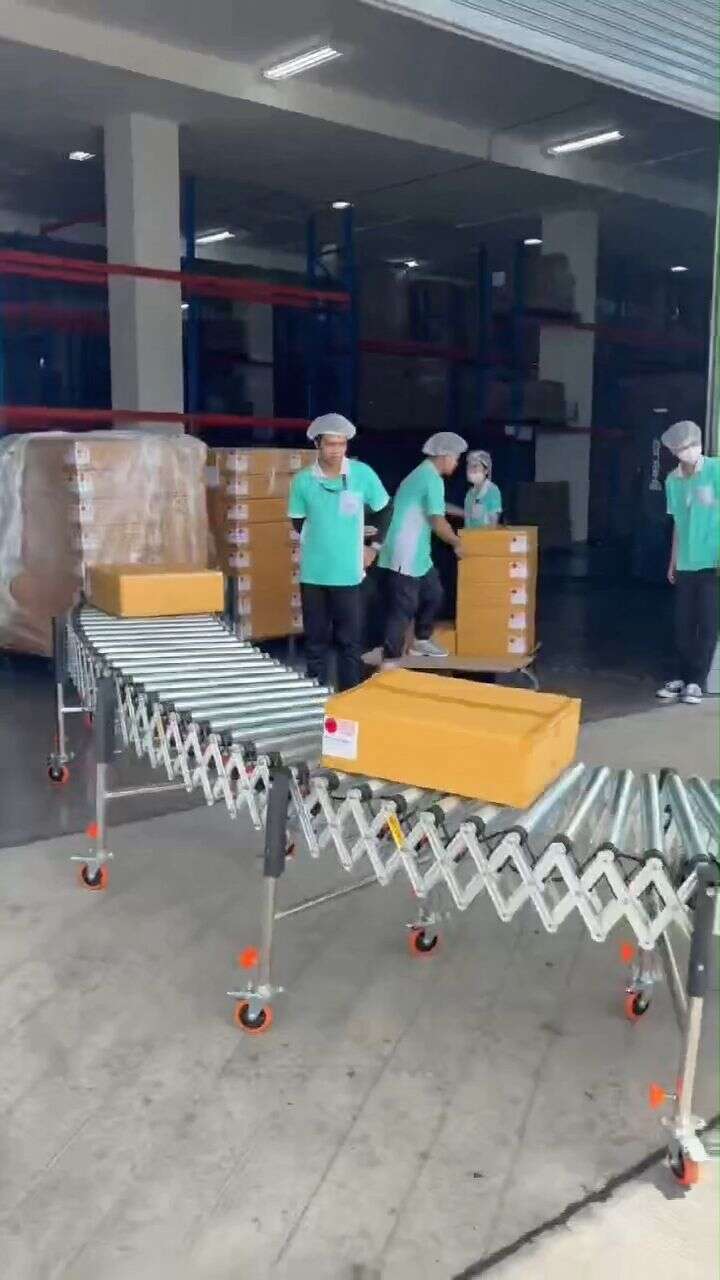

1. Warehouse-End Loading: Forklifts move boxed food raw materials placed on wooden pallets to near the starting end of the ground roller conveying line. Workers only need to move the boxes off the pallet and place them directly onto the roller line.
2. Automatic Conveying: Once the goods are placed on it


   Multi-Wedge Belt Powered Roller Conveyor

   The multi-wedge belt Powered Roller Conveyor uses a multi-wedge belt drive design to achieve smooth and efficient cargo conveying. Motor spacing range...

   Plastic Drum Metal Drum Carton Roll

   View Product →
   they are automatically driven forward. The conveyor line follows the preset turning path and smoothly delivers the goods to the entrance of the medium-sized incline machine at the warehouse exit.
3. Inclined loading: The goods are


   Medium Hydraulic Conveyor

   Medium Hydraulic Conveyor is specially designed for sites without loading and unloading platforms and is suitable for trucks under 40 ft. The hydrauli...

   Metal Drum Plastic Drum Roll Carton Bagged

   View Product →
   lifted and smoothly transition onto the 10-meter roller line laid inside the truck. The large-incline design of the incline machine makes efficient use of space and enables rapid lifting.
4. Staging inside the truck: The roller line inside the truck continues to convey the goods to the depths of the truck, where workers can easily receive and neatly stack them without having to shuttle back and forth between the truck and the ground.

The core advantages of this process arecontinuous conveyingandhuman-machine collaboration. It does not pursue full automation, but instead relies on the equipment to handle long-distance, repetitive conveying tasks, freeing labor from heavy handling work and allowing people to focus on loading/unloading handoff and stacking, achieving an efficiency boost of "1+1>2". This is consistent with the philosophy advocated in the finished goods warehouse efficient loading solution.

Analysis of the core advantages of the solution

1. Extremely flexible layout

Multi-Wedge Belt Powered Roller Conveyor supports flexible turning designs and can perfectly adapt to requirements such as "going around columns" and "avoiding racks" in complex warehouse environments, extending the conveying network to every required rack. This is difficult for fixed conveying equipment to achieve.

2. Significantly reduced labor intensity

Workers only need to place goods at the fixed loading point, without pushing pallet jacks or relying on forklifts for long-distance handling. Workers inside the truck also do not need to frequently get in and out of the truck to move goods, improving operational safety.

3. Greatly improved loading efficiency

The conveyor line provides a continuous supply of goods, eliminating the round trips and waiting time of forklifts in the traditional mode, making the loading process nearly uninterrupted and significantly shortening the loading time per vehicle. This model of improving efficiency through equipment combination is also fully reflected in the logistics warehouse loading efficiency improvement solution.

4. Protection of goods and packaging

The roller conveyor runs smoothly and has little impact on boxed food ingredients, effectively preventing packaging damage or content damage that may occur during handling, and ensuring the factory-outgoing quality of the products.

Summary

For industries with large warehouses and high cargo throughput, such as food ingredients, daily chemicals, and finished-goods logistics, this combined solution of "long-distance ground roller line + incline machine + extension line inside the truck" is an effective way to break through loading bottlenecks. Through appropriate equipment selection and layout, it efficiently connects dispersed warehousing workstations with centralized loading points, achieving a step-change improvement in logistics efficiency without significantly altering the warehouse structure. This solution proves that the proper application of conveying equipment is a key investment in improving the loading and unloading efficiency of traditional warehouses.
